BT-D Torsional Pipe Operator

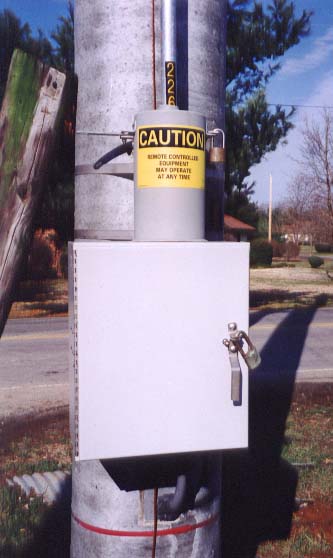

The BT-D motor operator is used to automate distribution feeder switches or distribution substation switches that operate with a torsion motion of the vertical operating pipe. The motor operator opens and closes the switch with an operating speed of .4 second with a torque of 8000 in-lbs.
BT-D Features
The motor operator features:
- Discrete circuit for controller operation
- Six statuses for switch position and operator condition
- Sophisticated battery manager
- Temperature compensated battery charger
- Powder-coated aluminum enclosure
- Transparency to communication protocols
- Torque-relief decoupler
- Electrically interlocked manual
operating handle
