DB-CV “V” Copper Double Break
DB-CV “V” Copper Double Break

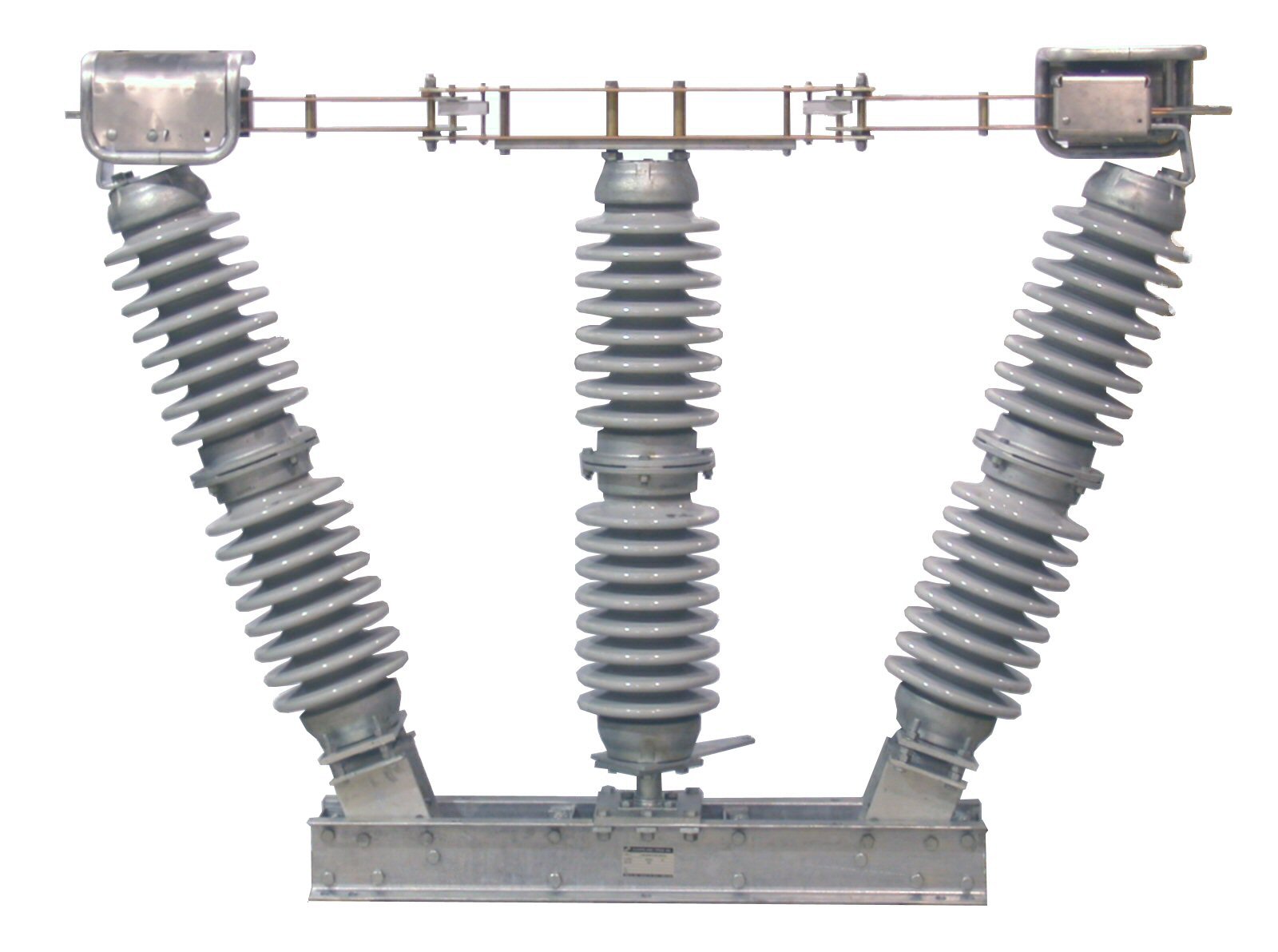

The DB-CV uses the same current carrying parts as the DB-C, however, the jaw end insulators are inclined. By having the jaw end insulators inclined, the cable conductors establish electrical clearance from the base without the need for wire guides or outriggers. The inclined insulator design makes the switch suitable for low profile substations. This design is available from 115 kV through 161 kV.
Brochure
Outline Drawing
115 kV – 161 kV, 1200 A. – 2000 A.
